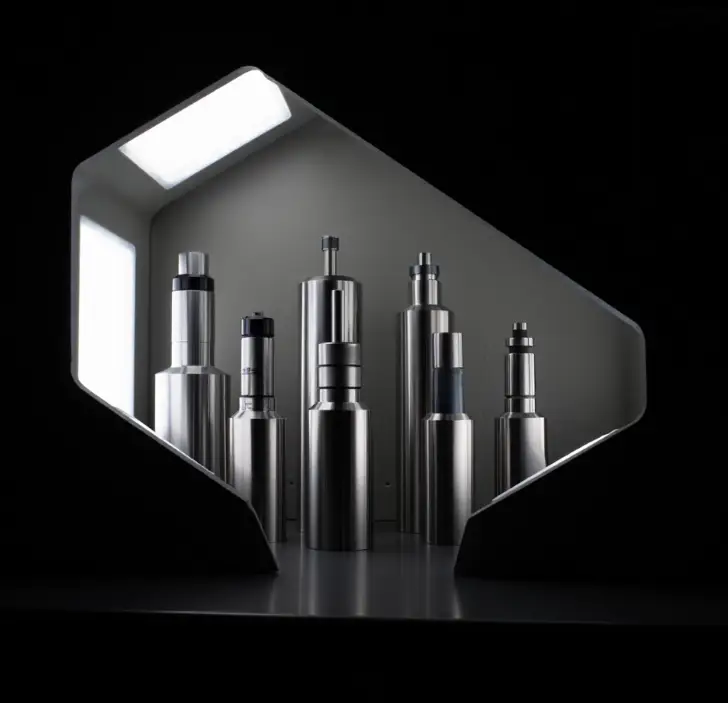

The Soul of Precision - A Technical Analysis of Dynamic Balance and Clamping Mechanics in CNC Tool Holders
When manufacturers ask me why their cutting accuracy fluctuates or why tool life varies between identical machining jobs, my answer almost always comes back to the same root cause: the performance of the CNC machine tool holder. As a supplier in this industry for decades, I have seen how subtle choices in dynamic balance, runout control, and clamping force distribution determine whether a production line delivers stable quality—or becomes a constant source of troubleshooting.
In this article, I want to walk you through the engineering principles that define tool holder precision. My goal is simple: to give procurement teams, plant owners, and production engineers a clear technical understanding of what actually affects cutting stability and how real measurement data can guide better purchasing decisions.
Why Dynamic Balance Matters More Than Ever
The evolution of modern CNC machining has pushed spindle speeds higher each year. Industries such as aerospace, automotive mold machining, EV components, semiconductor tooling, and medical parts all rely on high-speed machining (HSM). At 12,000, 20,000, or even 40,000 RPM, an unbalanced tool holder produces:
- Harmful vibration
- Accelerated spindle bearing wear
- Poor surface finish
- Lower dimensional stability
- Reduced tool life
Even a slight mass offset at high RPM produces centrifugal forces strong enough to amplify every other error downstream.
Typical Balance Grades and What They Mean
| Balance Grade | Max Vibration Energy | Suitable RPM Range | Common Applications |
|---|---|---|---|
| G6.3 | Higher | < 10,000 RPM | General machining |
| G2.5 | Moderate | 10,000–24,000 RPM | Precision milling |
| G1.0 | Very low | > 24,000 RPM | HSM, aerospace, mold |
What many users misunderstand is that balance grade isn’t just a spec—it's an engineering commitment. Achieving G2.5 or G1.0 requires:
- controlled material density,
- optimized holder geometry,
- precision grinding,
- uniform clamping force,
- and strict rotational testing.
Runout: The Silent Killer of Precision
While imbalance produces vibration, runout directly affects cutting accuracy and tool wear. Even 5 microns of runout can reduce tool life by up to 50% in carbide micro-tools.
How runout affects machining
When the tool tip does not rotate around a perfect center axis:
- one cutting edge removes more material,
- edge chipping occurs sooner,
- hole diameters drift out of tolerance,
- thermal load becomes uneven.
Most cutting tool holders today target ≤ 3 μm TIR (total indicator runout). But meeting this spec under load—not just in static measurement—is what truly differentiates high-grade holders from commodity ones.
Clamping Mechanics: The Physics Behind Stability
A tool holder’s job seems simple: grip the cutting tool.
But the force distribution within that grip determines how stable the tool remains under torque, radial load, and vibration.
Three factors determining clamping performance
- Contact surface area
- Force uniformity
- Holder deformation under load
Collet vs. Hydraulic vs. Shrink Fit – Practical Comparison
| Holder Type | Clamping Uniformity | Runout Stability | Vibration Dampening | Notes |
|---|---|---|---|---|
| ER Collet | Medium | 5–8 μm | Low | Versatile but less stable under heavy load |
| Hydraulic (HDC) | High | 3 μm or less | Excellent | Ideal for finishing & tool life improvement |
| Shrink Fit (HSC) | Very high | 2–3 μm | Medium | Best for HSM, requires heating device |
These differences influence:
- how deep the tool can cut without chatter,
- whether the spindle load remains stable,
- and how long the cutting edges survive.
Understanding Clamping Force Distribution With Real Data
Below is a simplified example of clamp force readings measured along the shank of a 12 mm end mill under three conditions.
| Holder Type | Max Holding Torque | Force Distribution | Notes |
|---|---|---|---|
| ER32 Collet | 80 Nm | Uneven (peak at rear) | Higher micro-slip risk |
| Hydraulic | 120 Nm | Uniform | Best for precision finishing |
| Shrink Fit | 150 Nm | High, centered | Ideal for roughing + HSM |
The data shows that stability is not just about maximum torque—it is about uniform transfer of torque throughout rotation.
How Dynamic Balance, Runout & Clamping Interact
These three elements form a closed loop:
- Poor balance → vibration → higher runout
- Higher runout → uneven cutting → variable torque
- Variable torque → clamping deformation → more imbalance
When all three are optimized, users gain:
- consistent surface finish,
- repeatable tolerances,
- longer tool life,
- reduced spindle wear,
- higher feed rates without chatter.
This is why choosing the correct CNC machine tool holder is a strategic decision—not a commodity purchase.
Industry Trend: Rising Demand for High-Performance Tool Holding
Recent reports highlight a global shift toward high-precision tool holding systems:
- Grand View Research – Tool Holder Market Report 2024
https://www.grandviewresearch.com/industry-analysis/tool-holder-market - Sandvik Coromant Industry Insights 2024
https://www.sandvik.coromant.com - Haimer High-Precision Spindles & Holders Data Sheets
https://www.haimer.biz
The trends are clear:
- Manufacturers prioritize balance grades G2.5 and better
- HSM adoption is accelerating in mold, aerospace, EV, and medical manufacturing
- Demand is shifting toward hydraulic and shrink-fit holders for predictable stability
- Users increasingly rely on runout performance under load, not static specs
Why We Invest Heavily in Measurement & Balancing Technologies
As Ann Way Machine Tools Co., Ltd., we continually refine our production processes for our cutting tool holders to achieve the consistency required by today’s machining standards.
Our engineering priorities include:
- fully-automated grinding systems,
- on-machine measurement,
- G2.5 dynamic balancing at rated RPM,
- thermal deformation compensation during finishing,
- real clamping force simulations,
- and strict TIR mapping under load.
These processes allow us to produce holders with:
- runout ≤ 3 μm under clamping load,
- high repeatability between batches,
- stable mass symmetry for HSM,
- and optimized clamping uniformity.
We design our systems so users don't have to fight vibration, chatter, or unstable tool life.
Conclusion
Precision is not a single specification, it is the interaction between dynamic balance, clamping mechanics, and runout. By understanding these factors, manufacturers can significantly improve machining stability, tool life, and production consistency.
If you are evaluating which tool holders will best support your machining requirements, we would be happy to assist.
